Name: Trailer Light Tester TLT9 – Remote Control – Electric Trailer Brake Compatible
SKU: 318
Availability: InStock

Description

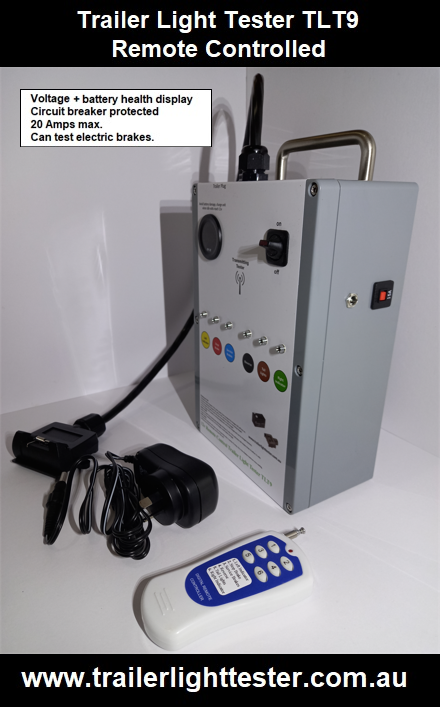

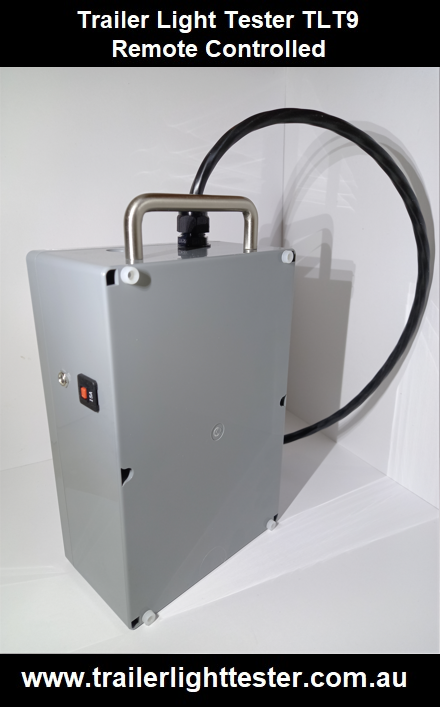

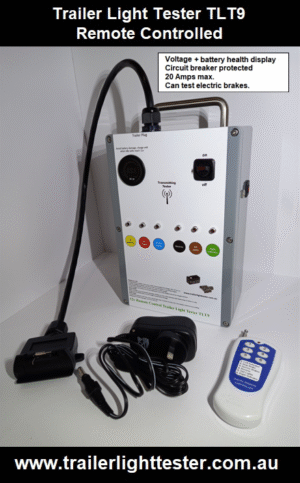

12v Trailer Light Tester TLT9 Remote Control Trailer Light Tester

Batter Powered – Rechargeable trailer diagnostic unit – Trailer Light Tester plus electric break testing at maximum 20 amps.

Battery Powered 12 volt DC Rechargeable Remote Control Trailer Light Tester

Can Test Twin Axle Electric Brakes

20 Amp Unit – can reach 20amps for 40 seconds – 22amps for 40sec

Trailer Light Test Box

Trailer Wiring Tester enables users to test a trailers lighting circuit without the need for a car. Identify faults fast. Capable of testing electric brakes up to 18 amps.

Remote Control Trailer Light Tester
Test a trailer plug for all 6 circuits integrity (including electric brakes)
Add a male to male plug to the trailer plug and test your cars lights (Lead Not Included in this Sale)

A full all round trailer tester

Capable for many multiple hours of continued use with its huge 6.5amp hour 12 volt battery. Battery powered and tested for up to 12 hours of constant load on a regular size trailer on a single charge. Testing Electric Trailer Brakes (continuous load applied at 16amps) for a total of 9 minutes before requiring a charge. Fully portable unit. Maximum 20 Amp rated capacity. Monitors the loads for each light so as to check for consistencies among lighting circuits.

Remote Control Trailer Light Tester

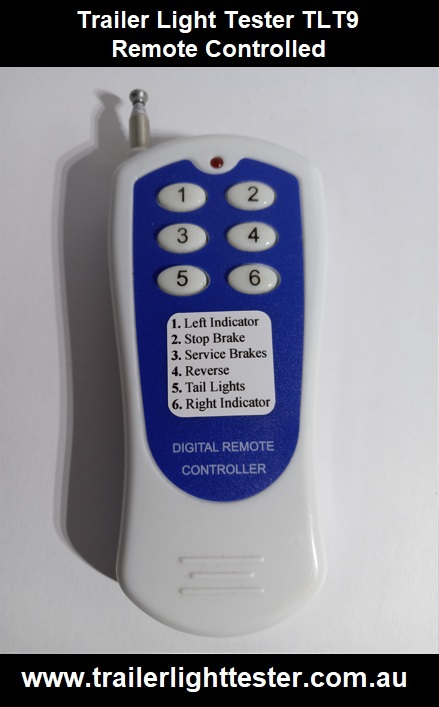

Remote controlled for up to 100 meters. Plug it into the trailer and walk around the back of it and test the lights remotely. Great for them long semi trailer test.

Battery Life

Regular Light Testing – On a full charge this unit is capable for many multiple hours of continued use with its huge 6.5amp hour 12 volt battery. Tested on regular size trailer all lights on at 0.5 amps up to 8 hours of constant use before requiring a charge.
Testing Single Axle Electric Trailer Brakes (continuous load applied at 8amps) for a total of 18 minutes before requiring a full charge.
Testing Twin Axle Electric Trailer Brakes (continuous load applied at 16amps) for a total of 9 minutes before requiring a full charge.
Fully Portable Unit. Keeping the unit fully charged is highly recommended and is highly recommended after electric brake testing is applied.

External Power Source

An external 12 volt supply can be applied via the positive and negative terminals on side of unit.
Alternatively the unit can also supply a 12 volt source to external loads via the positive and negative terminals on side of unit.

Circuit breaker tripping times

Can hold a load of 17Amps for 5 minutes
Can hold a load of 20Amps for 40 seconds
Can hold a load of 22Amps for 10 seconds
Any Short Circuit causes instant trip

Sale Includes

12 VOLT DC Smart Charger

Trailer Tester Box Complete

2 x Remote Controls

SPECS

12 VOLTS DC Charger (included)

12 VOLT internal Lead Acid Battery 6.5 amp hours

Protection : 15 Amp Circuit Breaker (20 Amp loads or greater causes Circuit Breaker to Trip unit, Press Circuit Breaker reset to start again)

Remote Control Trailer Light Tester
Rated: 12 Volts / 216 Watts / 18amp

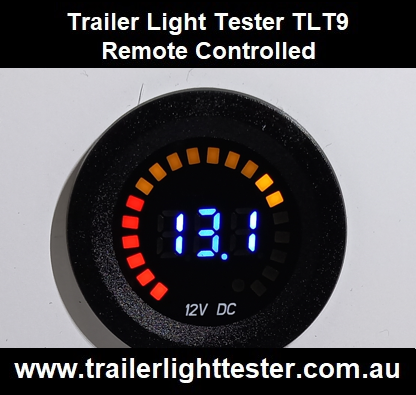

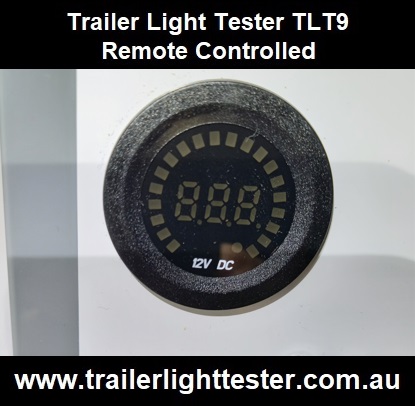

Display : 12v Digital display and Battery Health Digital Display
Rechargeable: Charger included
Remote: 2 x included in sale
Battery type: Lead Acid
Battery Capacity: 6.5 amp/hours
External power supply capable – Yes, via the 12 volt pos/neg terminals.
Short Circuit Protection: 15 amp load side circuit breaker trips at 20 amps
Battery protection: none, Recharge to full once unit hits 11 volts when idle
Maximum Loads: 22 amps
Trailer Plug: Female 7 pin Flat

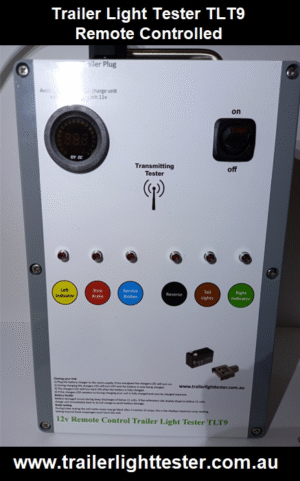

Switches: 6 x Circuit indication via the illuminating LED’s on unit
Switched: On/Off
Dimensions: 240mm x 160mm x 75mm
Weight: 3500 Grams
Operating Temperature: 0 degrees – 40 degrees
Classification: Class 2 Charger
Manufactured: Australian Made
