Trailer Light Tester TLT 240v to 12v

Original price was: $249.90.Current price is: $219.90.

Category:

Description

Trailer Light Tester 230v Mains power supplied down to 12volts 5 Circuitstrailer-light-tester-tlt230-7

230 volt AC to a 12 volt DC Trailer Light Tester 2.5 Amp unit

Cannot Test Electric Brakes

Trailer Light Tester 230v to 12v

Trailer light tester uses a mains power source to illuminate trailer lighting for wiring, testing, fault finding, etc.
Perfect for the garage or industrial warehouse environment where mains power is easily accessible and where constant charging is not desired.
30 Watt rated useful for constant work where trailer light loads do not exceed 2.5 amps. No charging required.

Example loads

A regular box trailer with 5 x LED lights (Left indicator – Right indicator – Brake – Tail lights – Licence plate) draw on average .3 amps combined. This little unit can handle a lot.


5 Switch Trailer Light Controller

  • Switch 1 – Yellow – Left-hand turn indicator.
  • Switch 2 – Red – Stop lights.
  • Switch 3 – N/A
  • Switch 4 – Black – Reversing Lights
  • Switch 5 – Brown – Tail lights.
  • Switch 6 – Green – Right hand turn indicator

INPUT

230 VOLTS AC – Australian
30 Watts

OUTPUT

12 VOLTS DC 7 Pin Flat Trailer Plug
30 Watts
2.5 AMPS
Protections : Short, Overload and Over Voltage
  • Dimensions: 160mm x 95mm x 53mm
  • Weight: 550 Grams
  • Operating Temperature: 0 degrees – 35 degrees
  • Classification: Class 2
  • Australian Manufactured.

trailer-light-tester-tlt-240-volts-1

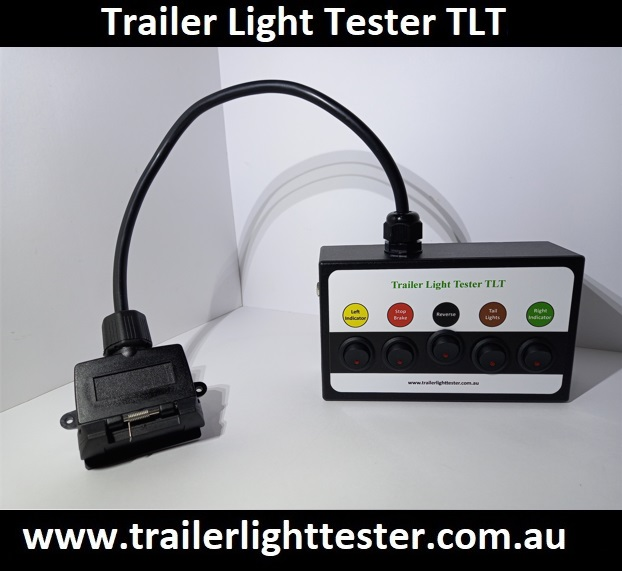

7 Pin flat 12 volt supplied by 240volt power supply

trailer-light-tester-tlt230-9

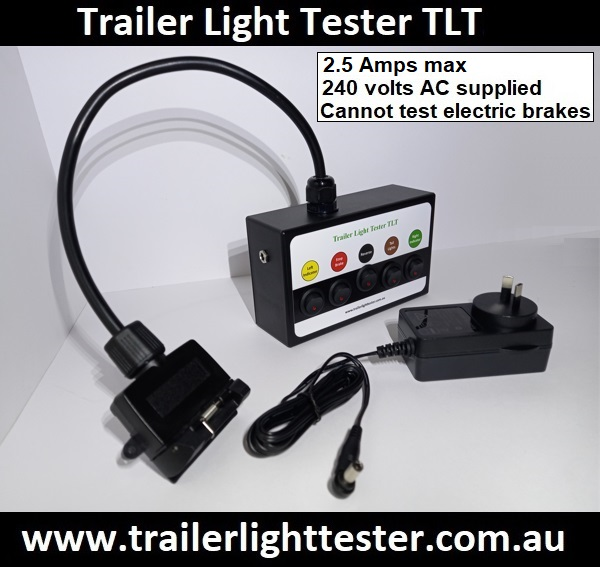

240 volt supply as the Input

trailer-light-tester-tlt230-5

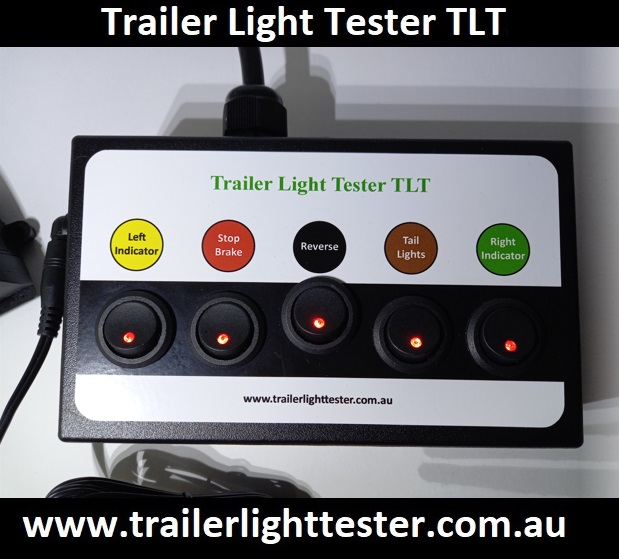

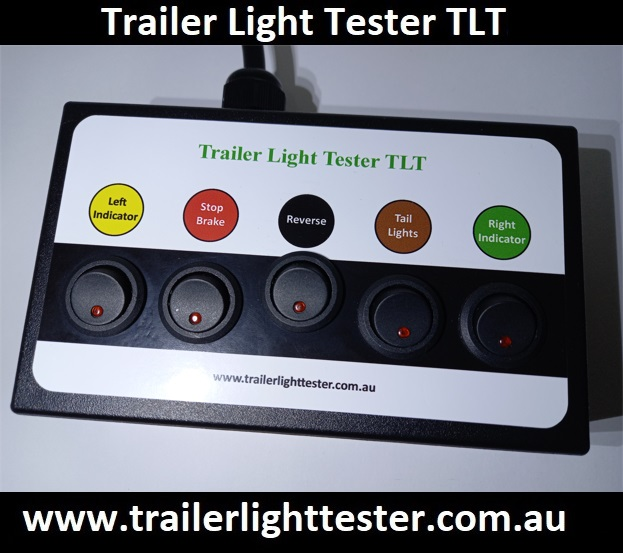

5 Output Tester

trailer-light-tester-tlt230-6

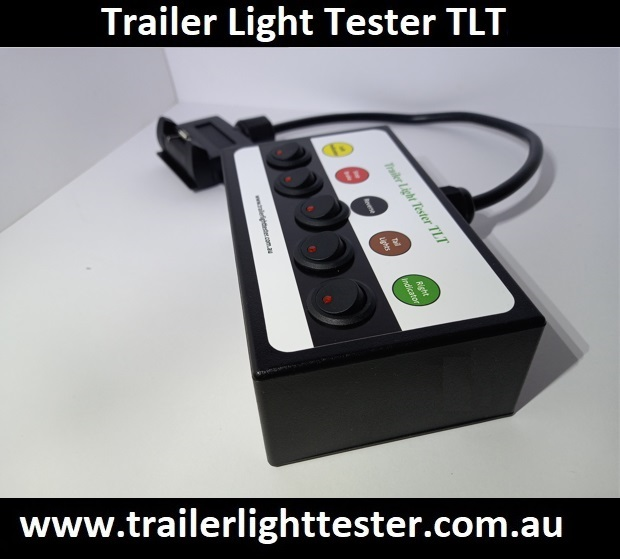

Inputs up to 5 lighting inputs

Orders normally ship within 2-4 business days
