Description
Caravan Light Tester
Batter Powered – Rechargeable Caravan trailer diagnostic unit – Caravan Light Tester plus electric break testing at maximum 20 amps.
Plus 4 x Auxiliary Switches
NOTE : This UNITS 4 x Auxiliary switches are to be supplied externally via your own supply, or parallel the units internal battery via the side RED/BLACK battery terminals to supply the Auxiliary switches with the units internal battery, as demonstrated in the last 2 images below. The unit will then supply all 10 x switches with the units own internal 12v battery.
12 Pin Trailer Plug Tester
12 Pin Trailer Plug Tester 12 to 24 volts. Plug it into your car & test your vehicles trailer plug outlet.
Battery Powered 12 volt DC Rechargeable Vehicle and Caravan Light Tester
Can Test Twin Axle Electric Brakes
Can Test 12 Pin Auxiliaries
20 Amp Unit – can reach 20amps for 40 seconds – 22amps for 10sec
12 Pin Caravan Light Test Box
- Test a cars trailer plug integrity for all 12 circuits
- Test a trailer plug for all 12 circuits integrity
- Self test the unit for unit circuit integrity so you know the unit is working.
- Test your trailer extension leads too
- Test Electric Brakes
A full all round Vehicle, Trailer and Caravan Light Tester
Battery Life
- Regular Light Testing – On a full charge this unit is capable for many multiple hours of continued use with its huge 6.5amp hour 12 volt battery. Tested on regular size trailer all lights on at 0.5 amps up to 8 hours of constant use before requiring a charge.
- Testing Single Axle Electric Trailer Brakes (continuous load applied at 8amps) for a total of 18 minutes before requiring a full charge.
- Testing Twin Axle Electric Trailer Brakes (continuous load applied at 16amps) for a total of 9 minutes before requiring a full charge.
- Testing Caravan Auxiliaries with your own supply or parallel the internal battery via the external battery terminals to supply auxillaries (continuous load applied at 16amps) for a total of 9 minutes before requiring a full charge. Apply your own supplies to get more oomph out of this unit if you like.
- Fully Portable Unit. Keeping the unit fully charged is highly recommended and is highly recommended after electric brake testing is applied.
- An external 12 volt supply can be applied via the positive and negative terminals on side of unit if the internal battery is removed.
- Alternatively the unit can also supply a 12 volt source to external loads via the positive and negative terminals on side of unit.
- Auxiliary supply is to be supplied via your own 12v to 24 volt supply or you can parallel the units external RED/BLACK battery terminals to supply the Auxiliary switches with the units internal battery, as demonstrated in the last 2 images below.
- Can hold a load of 17Amps for 5 minutes
- Can hold a load of 20Amps for 40 seconds
- Can hold a load of 22Amps for 10 seconds
- Any Short Circuit causes instant trip
Vehicle Plug Testing Capability
Auxiliary Testing Capability
Sale Includes
SPECS
- Test Vehicle 12 pin plug and Test Caravan and its Auxiliaries
- Rated: 12 Volts / 240 Watts / 20amp, take out battery apply your own 24volts externally via the battery terminals outside of the box.
- 12 to 24v Digital display
- Battery Health Digital Display
- Rechargeable: Charger included
- Battery type: Lead Acid, Replaceable.
- Battery Capacity: 6.5 amp/hours
- External power supply capable – Yes, via the 12 volt pos/neg terminals when internal battery removed.
- Short Circuit Protection: 15 amp load side can handle up to 22 amps, Auxliary higher ratings
- Battery protection: none, Recharge to full once unit hits 11 volts when idle
- Maximum Loads: 22 amps for 10 seconds, Auxiliaries higher amps around 25 amps.
- Trailer Plug: Female and Male 12 pin Flat
- Switches: 12
- Display: Volts and battery health
- Switched: On/Off
- Dimensions: 240mm x 160mm x 75mm
- Weight: 3500 Grams
- Operating Temperature: 0 degrees – 40 degrees
- Classification: Class 2 Charger
- Manufactured: Australian Made
12 Switch Trailer Light Controller
- Switch 1 – Yellow – Left-hand turn indicator.
-
Switch 2 – Red – Stop lights
-
Switch 3 – Blue – Service brakes.
-
Switch 4 – Black – Reversing Lights
-
Switch 5 – Brown – Tail lights.
-
Switch 6 – Green – Right hand turn indicator
-
Switch 8 – Purple – Auxiliary.
-
Switch 9 – Pink – Auxiliary.
-
Switch 11 – Orange – Auxiliary.
-
Switch 12 – Grey – Auxiliary.
Heavy duty caravan light tester capable of up to 22amps and more via aixliaries
Test your Caravan, your trailer, Your vehicle and self test the unit too.

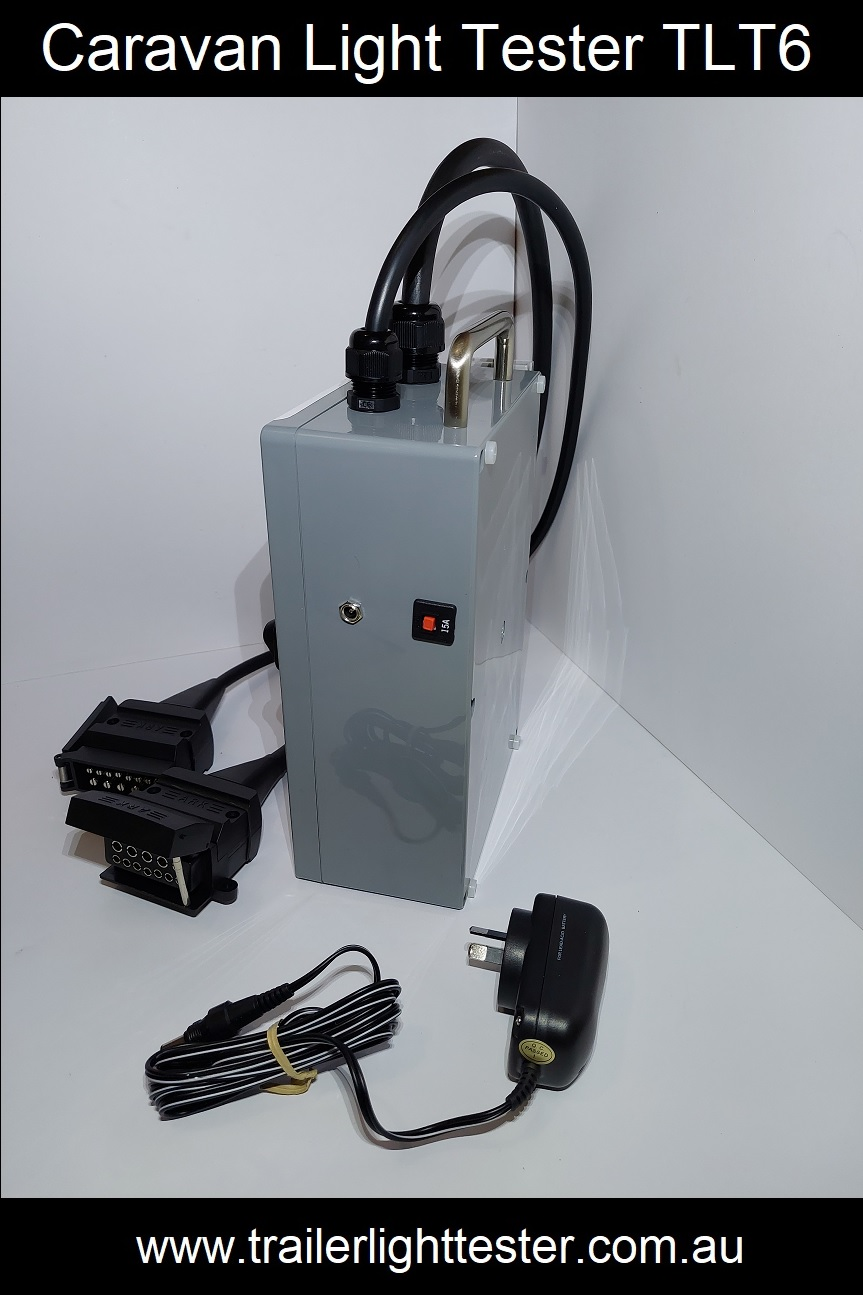

Caravan light tester showing charging port and circuit breaker
Trailer light tester from behind showing feet

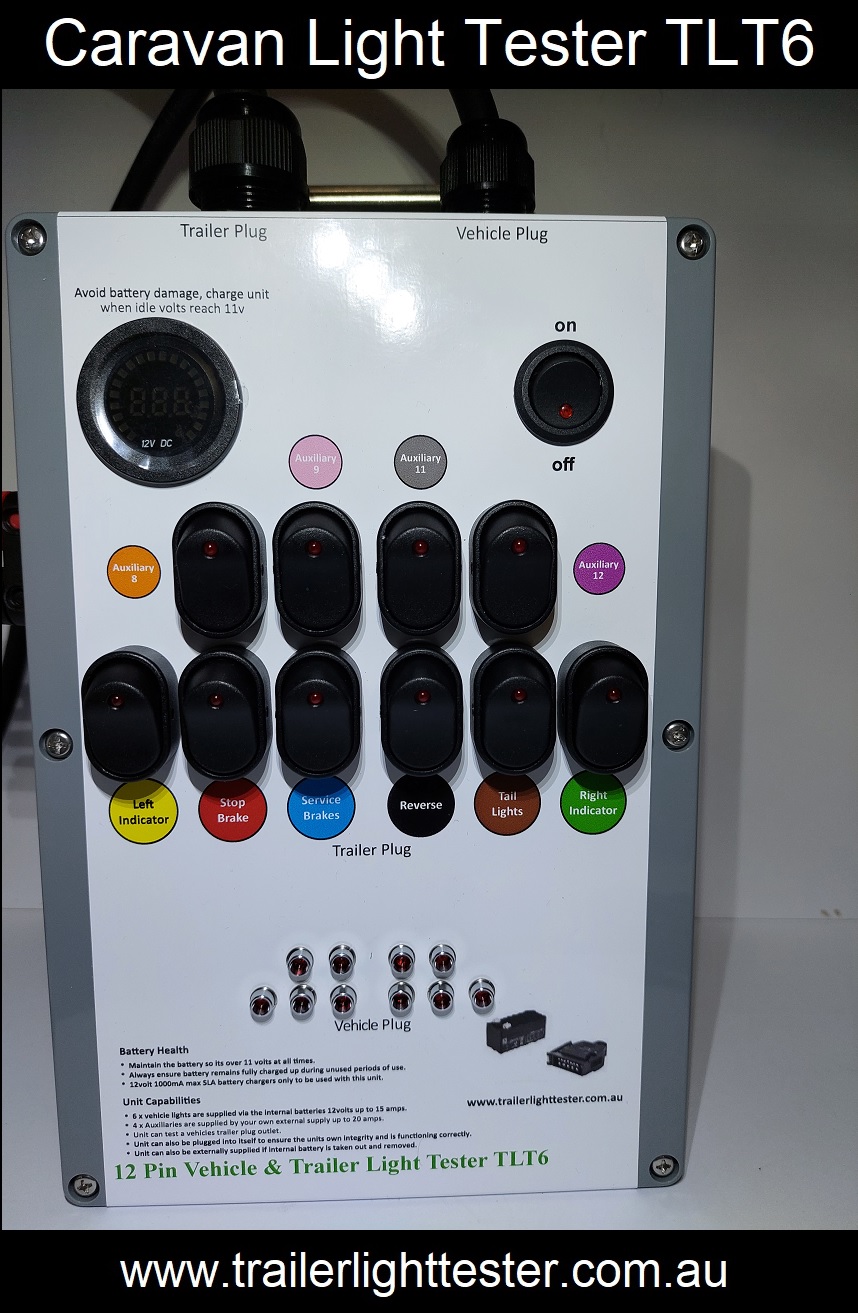

Trailer light tester from front

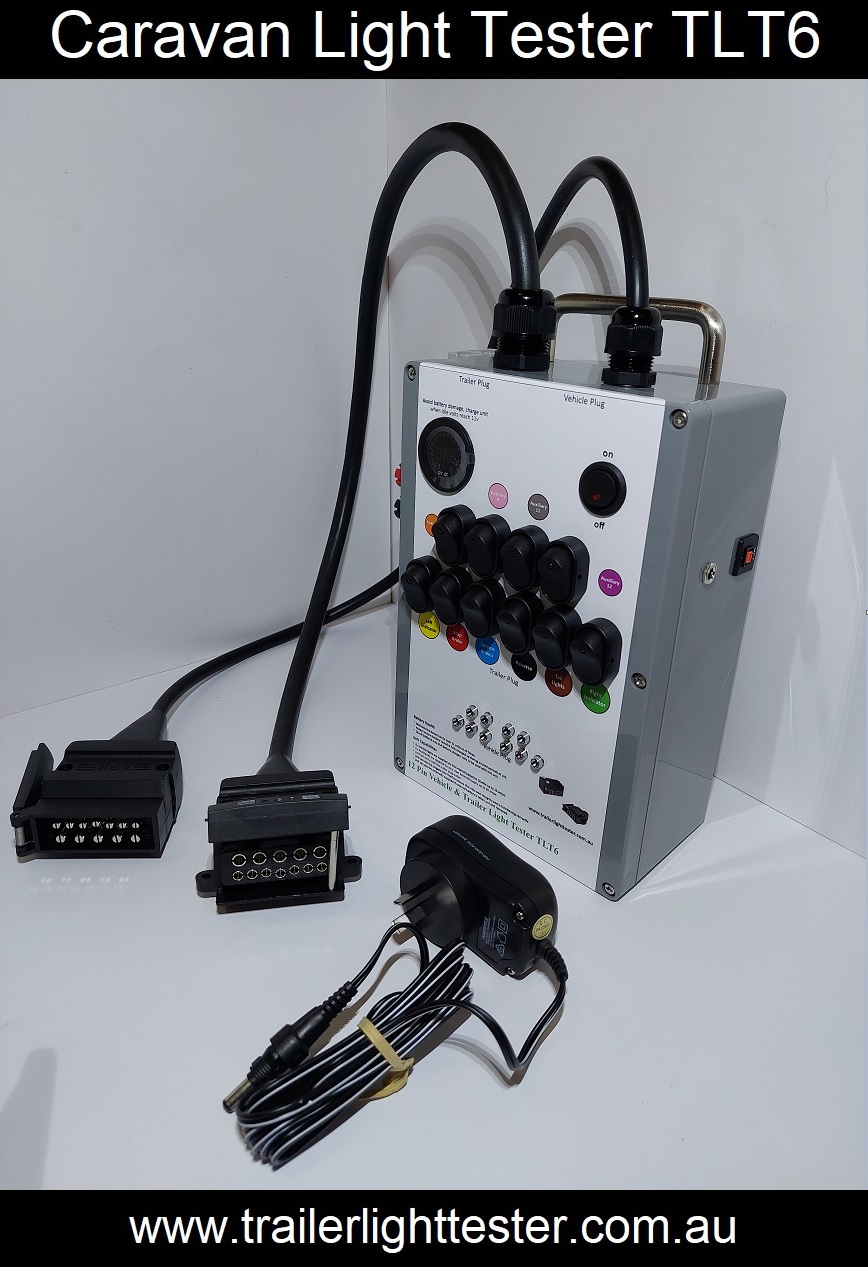

Caravan light tester contents

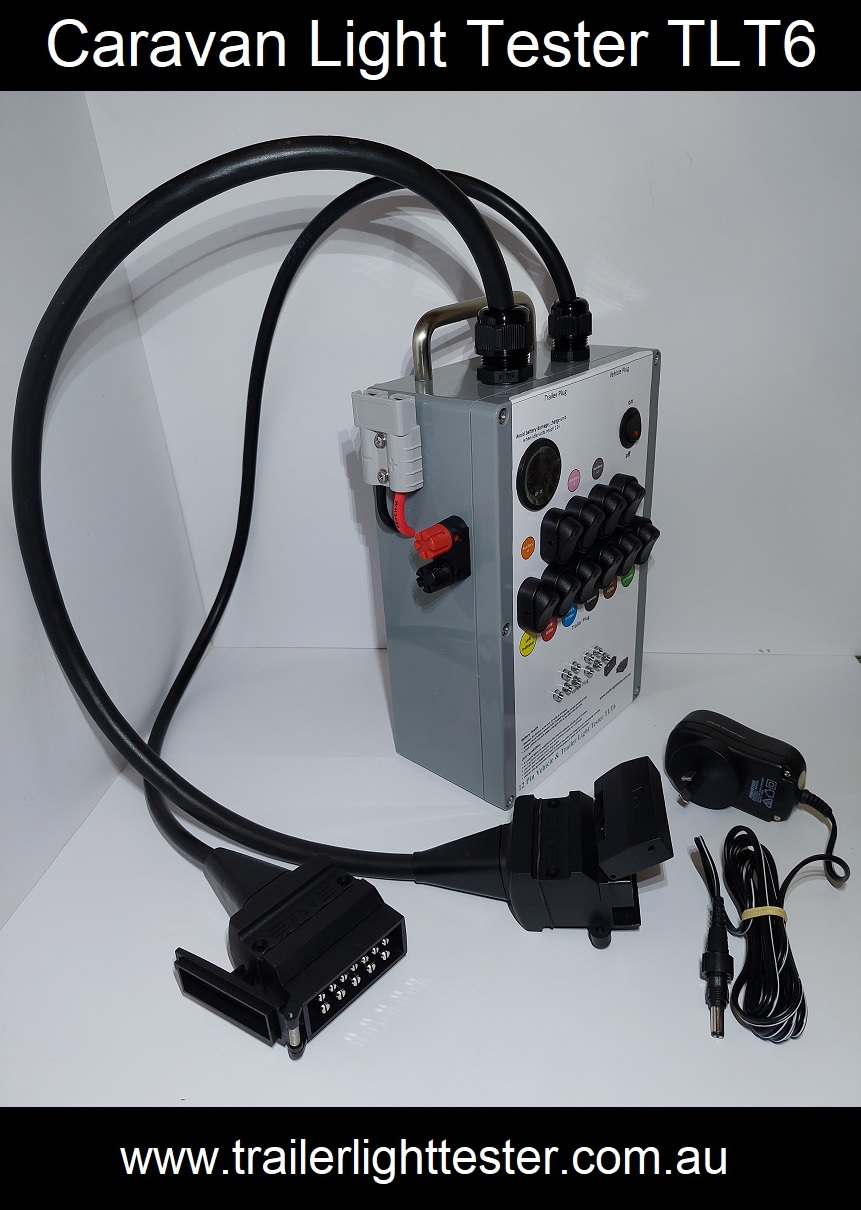

Supply the auxiliaries via the internal battery by paralleling the external battery terminals. Or leave them out and you supply the auxiliaries with your own supply.

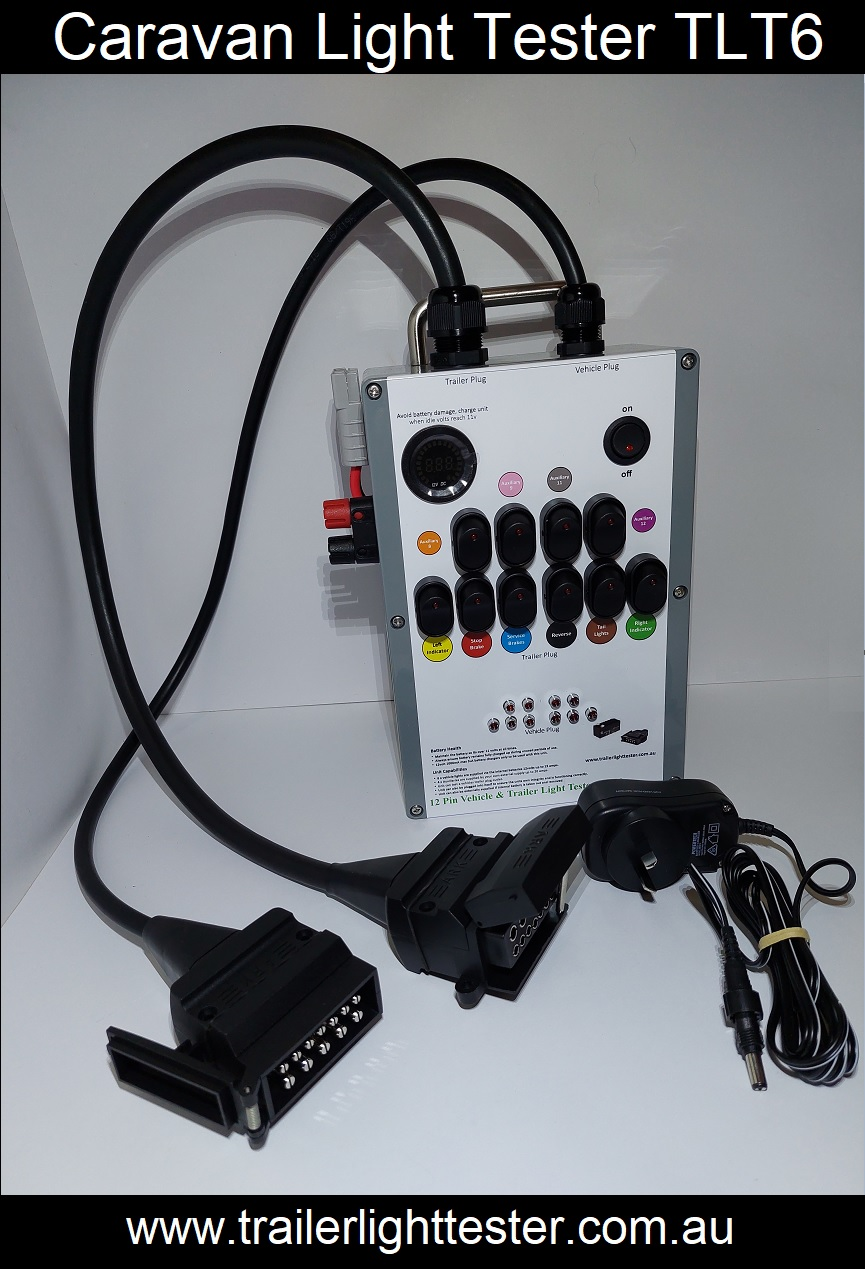

Supply the auxiliaries via the internal battery by paralleling the external battery terminals. Or leave them out and you supply the auxiliaries with your own supply.
Orders normally ship within 2-3 business days
