Description

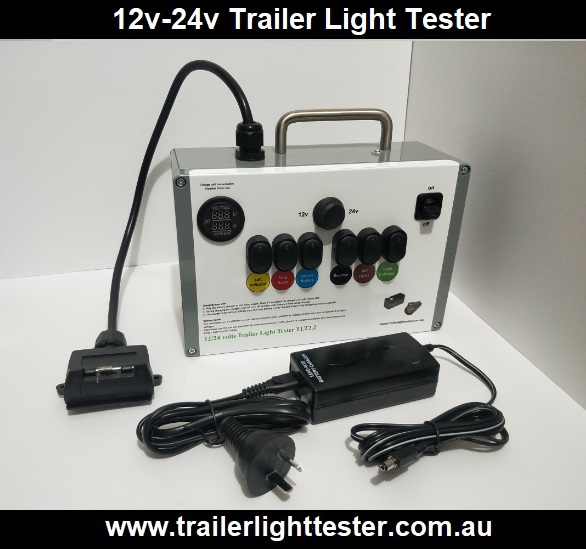

Truck Trailer Light Tester TLT2.2
Batter Powered – Rechargeable
Switch 12volts – 24volts / 120 Watts – 240 Watts
Battery Powered 12 volt – 24 volt DC Trailer Light Tester
Can Test Single Axle Electric Brakes but not Twin Axle
Semi Trailer Light Tester Box and a Car Trailer Light Tester Box
Trailer Wiring Tester enables users to test trailer lighting without the need for a car or a truck. Capable for multiple hours of continued use. 24 volts Tested lights at .5amps for up to 4 hours of constant load on a regular size trailer on a single charge and double that for a 12 volt setting, fully portable, battery powered and rechargeable. Maximum 10 Amp rated capacity. Monitors the loads for each light so as to check for consistencies among lighting circuits.
Battery Life
- Regular Light Testing – On a full charge this unit is capable for many multiple hours of continued use with its 4.4amp/hour 12 volt battery and 2.2amp/hour 24 volt battery..
- Testing Single Axle Electric Trailer Brakes – (continuous load applied at 8amps) for a total of 6 minutes before requiring a full charge.
- Testing Twin Axle Electric Trailer Brakes – Not applicable
Fully Portable Unit
Keeping the unit fully charged is highly recommended and is highly recommended after electric brake testing is applied. Fully portable and light. Maximum 14 Amp rated capacity. Monitors the loads for each light so as to check for consistencies among lighting circuits.
Circuit breaker tripping times
- Can hold a load of 11 Amps for 5 minutes
- Can hold a load of 13 Amps for 40 seconds
- Can hold a load of 14.60 Amps for 10 seconds
- Any Short Circuit causes instant trip
Sale Includes
12 volt VOLT DC Smart Charger
Trailer Tester Box Complete
SPECS
12 – 24 VOLTS DC Charger (included)
Internal Lead Acid Battery to supply unit independently from external supply.
Protection : 10 Amp Circuit Breaker (10 Amp loads or greater causes Circuit Breaker to Trip unit, Press Circuit Breaker reset to start again)
- Rated: 12-24 Volts / 120 Watts – 240 Watts
- Rechargeable: Charger included
- Battery type: Lead Acid
- Battery Capacity: 12 Volt – 4.4 amp/hours and 24 volts – 2.2 amp/hours
- Short Circuit Protection: Load side circuit breaker
- Maximum Load: 10 amps
- Trailer Plug: Female 7 pin Flat
- Switches: 6
- Display: Volts and Amps
- Switched: On/Off
- Dimensions: 240mm x 160mm x 90mm
- Weight: 2500 Grams
- Operating Temperature: 1 degrees – 40 degrees
- Classification: Class 2 Charger
- Manufactured: Australian Made

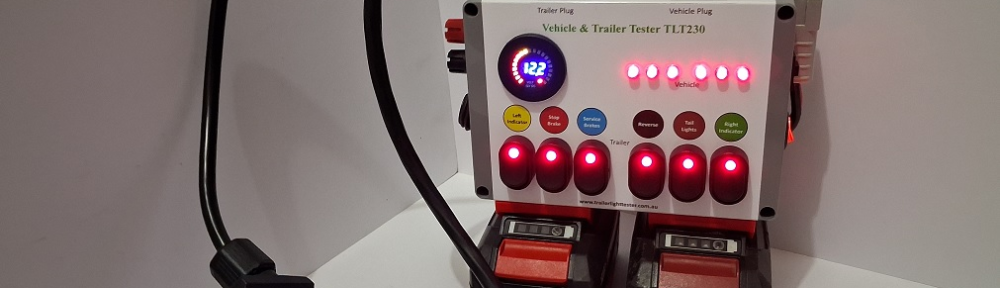

6 Switch Trailer Light Controller
- Switch 1 – Yellow – Left-hand turn indicator.
-
Switch 2 – Red – Stop lights.
- Switch 3 – Blue – Service brakes
-
Switch 4 – Black – Reversing Lights
-
Switch 5 – Brown – Tail lights.
-
Switch 6 – Green – Right hand turn indicator
Example loads for a 5 wire wired trailer with LED lights
- Left-hand turn indicator 0.09 amps
-
Stop lights 0.29 amps
-
Tail lights 0.001 amps
-
Right hand turn indicator 0.09 amps
Orders normally ship within 2 business days
